Sealed system & compressor
Sub-Zero sealed system & compressor repair in Walnut Creek
The most consequential Sub-Zero repair there is — diagnosed with gauges and electrical proof, never a guess.
A Sub-Zero compressor or sealed-system failure is the one repair that demands real evidence before a quote. We pressure-test the high and low side, prove the compressor electrically, and rule out fans, dampers and controls first — then give you a written parts-vs-labor cost breakdown and honest repair-versus-replace advice. The $89 service call is waived with your repair, and all labor carries a 365-day warranty.
- $89 service call, waived with repair
- 365-day labor warranty
- Genuine OEM Sub-Zero parts
- Same-day where open
Direct answers
Compressor and sealed-system questions, answered up front
What it costs, why we test first, and how Diablo Valley heat plays into a sealed-system failure.
How much is a Sub-Zero compressor replacement in Walnut Creek?
A full sealed-system compressor job typically runs $1,450–$3,600 — roughly $550–$1,400 in parts and $900–$2,200 in labor. The $89 service call is waived with your repair, and all labor carries a 365-day warranty. See the full repair cost guide for every range.
Why do you pressure-test before quoting a sealed system?
A warm Sub-Zero can come from a fan, a control or the sealed system itself. We confirm the fault with manifold gauges and electrical readings before naming a compressor or evaporator, so you never pay for a major repair the unit did not need. Start with our not-cooling diagnosis.
Is a sealed-system repair worth it on an older built-in?
Often, yes. A sealed-system repair is far less than a $7,000–$12,000 built-in replacement, and Classic units were engineered to be serviced for decades. We give honest repair-versus-replace advice in writing so you decide with real numbers.
Does Diablo Valley heat affect the sealed system?
It does. Inland summers raise the head pressure a compressor works against, so a marginal charge or packed condenser fails sooner here. See how local conditions load these units on our climate effects page.
Dual refrigeration, two sealed systems

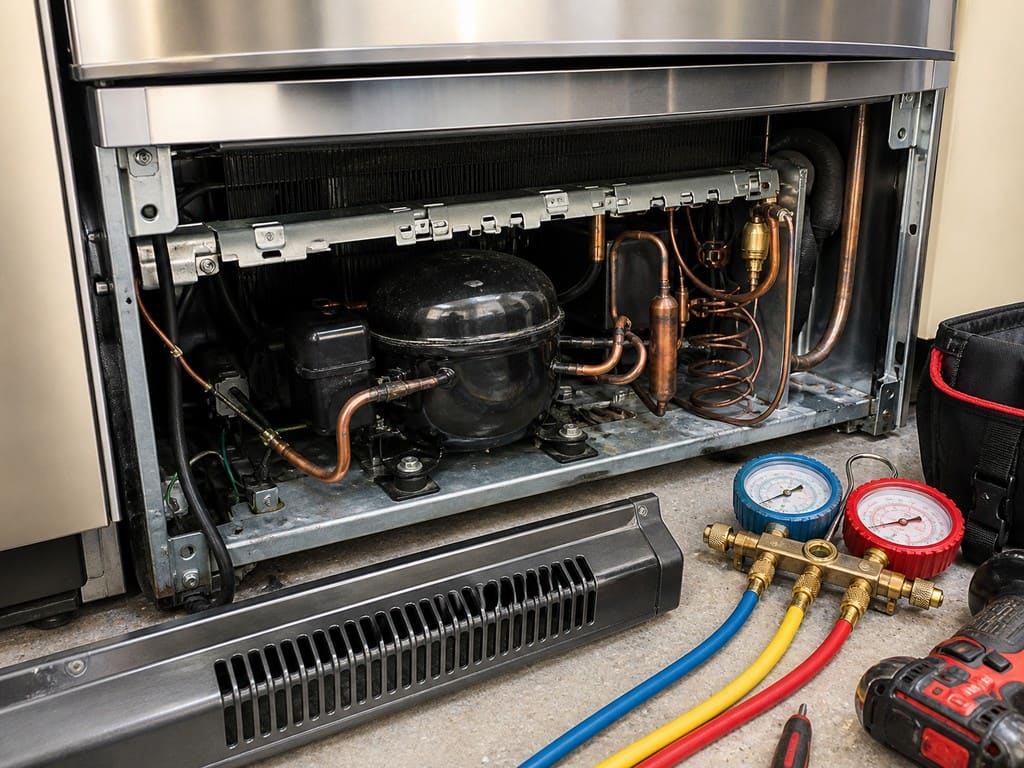

What a Sub-Zero sealed system actually is
Understanding the design is the difference between a targeted repair and a costly guess.
Every Sub-Zero built-in runs two independent sealed systems — one for the refrigerator and one for the freezer — so each compartment keeps its own humidity and temperature. Each loop is a closed circuit: a compressor pumps refrigerant, the condenser behind the lower grille sheds heat, a metering device feeds the evaporator coil inside the cabinet, and a filter-drier keeps moisture out of the line. When that circuit is healthy the unit barely runs. When it is not, one zone slowly warms while the other may stay perfect — a tell-tale sign of dual refrigeration that a generalist often misreads as a single problem.
A sealed-system fault is rarely obvious from the outside. A low charge, a pinhole leak in an evaporator, a restriction in the capillary, a dead compressor, or even a failed start relay can all produce the same warm cabinet. That is exactly why we never name a compressor or evaporator from symptoms alone. We confirm the model, rule out the fans, dampers and defrost system that mimic a sealed-system failure, then put manifold gauges on the circuit and test the compressor electrically before a single major part is quoted. If you are not yet sure the sealed system is to blame, start with our Sub-Zero not-cooling diagnosis.
The parts of the loop
Compressor, evaporator, condenser and filter-drier
Each component fails differently, and each leaves a different signature on the gauges.
-
Compressor
The pump at the heart of each circuit. When it loses compression or seizes, the affected zone slowly warms and the unit runs constantly without cooling.
-
Evaporator coil
The cold coil inside the cabinet that absorbs heat from the air. A pinhole leak or restriction here starves the zone of cold and frosts unevenly.
-
Condenser
The outer coil that rejects heat, behind the lower grille. Packed with Diablo Valley dust it cannot shed heat, driving pressures and temperatures up.
-
Filter-drier
A small canister that traps moisture and debris in the refrigerant loop. It is always renewed when the sealed system is opened for a repair.
-
Capillary / metering
The precise restriction that meters refrigerant into the evaporator. A blockage here mimics a low charge and needs gauge readings to confirm.
-
Start components
The relay, capacitor and overload that bring the compressor up to speed. A failed start device can stall a perfectly good compressor.
Evidence before quote

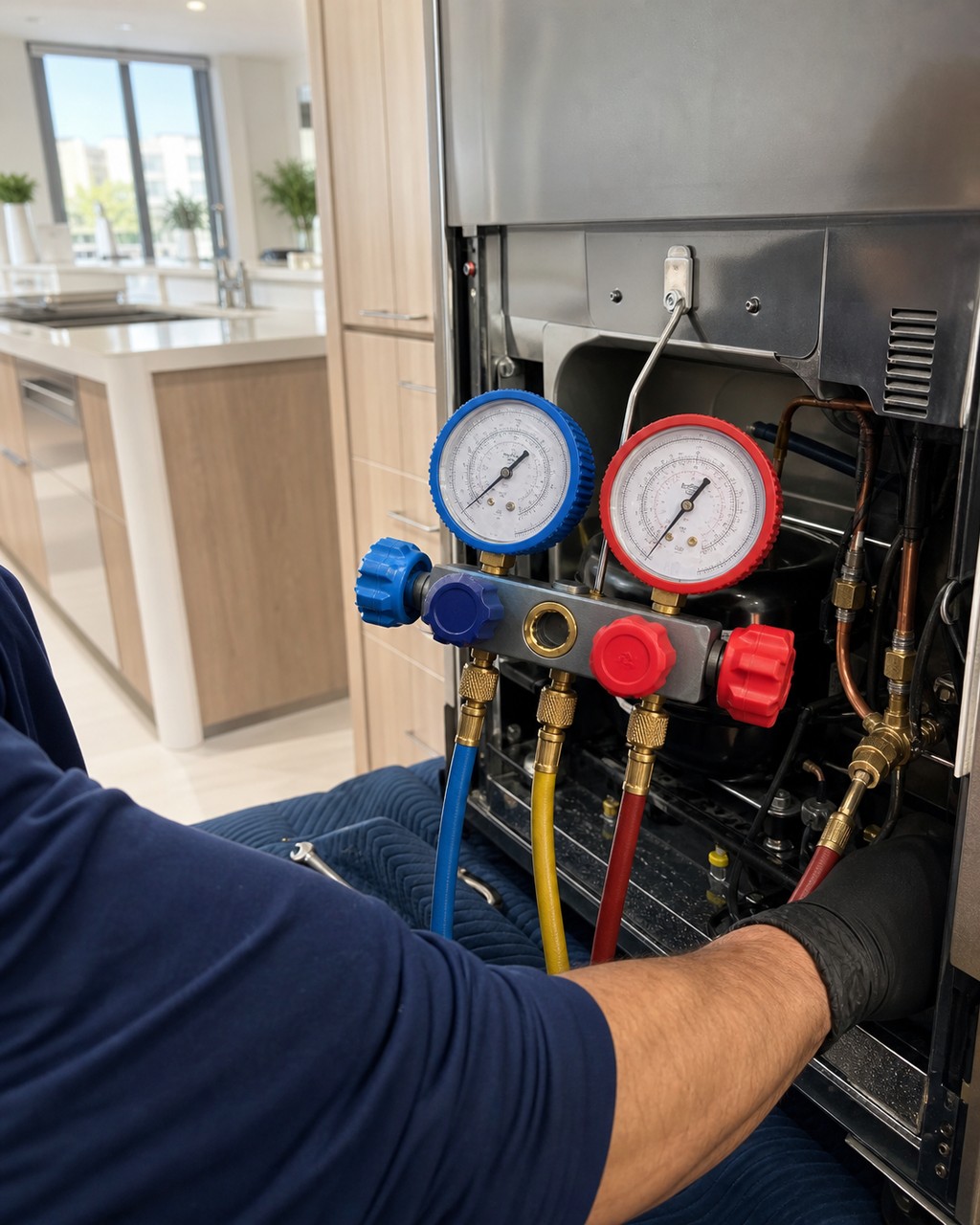

Why we put gauges on it before naming a compressor
A sealed-system repair is the most expensive thing that can go wrong with a Sub-Zero, so it is the last thing we want to quote on a hunch. Manifold gauges and electrical testing turn a vague warm cabinet into a specific, provable fault — and frequently reveal that the real culprit is a fan, a defrost component or a control board costing a fraction of a compressor. That is how Walnut Creek owners avoid paying for a sealed system the unit never needed.
- Pressure readings show a low charge, a restriction or a dead compressor as real numbers on the high and low side.
- Electrical proof separates a failed compressor motor from a failed start relay, capacitor or overload.
- Zone isolation tells us which of the two sealed systems is at fault, so the other is left untouched.
- A written quote follows the test — parts and labor named, with the $89 service call credited to the repair.
Cost breakdown
Sealed-system repair cost: parts vs labor
Draft planning ranges for the most common sealed-system jobs. Your written quote is confirmed after pressure and electrical testing.
| Job | Parts | Labor | Total |
|---|---|---|---|
| Condenser fan motor | $120–$320 | $180–$340 | $300–$660 |
| Evaporator fan motor | $110–$280 | $200–$420 | $310–$700 |
| Defrost heater + sensor | $90–$240 | $220–$460 | $310–$700 |
| Electronic control board | $180–$520 | $200–$520 | $380–$1,040 |
| Compressor (full sealed system) | $550–$1,400 | $900–$2,200 | $1,450–$3,600 |
Ranges are for planning only; the final price depends on the model, parts, access and diagnosis. The $89 service call is waived with your repair and all labor carries a 365-day warranty. For every other repair range, see the Walnut Creek repair cost guide.
Our diagnostic method
How we confirm a sealed-system fault
Five evidence-first steps that protect you from paying for a repair the unit does not need.
- 1
Confirm the model and history
We read the model and serial tag and the control board log, so we know which of the two sealed systems is reporting trouble before we touch a gauge.
- 2
Verify temperatures and airflow
We measure each compartment, check the condenser and evaporator fans, and rule out a damper, defrost or control fault that only looks like a sealed-system failure.
- 3
Pressure-test the system
Manifold gauges read the high and low side so we can see a low charge, a restriction or a dead compressor as real numbers — not a guess.
- 4
Prove it electrically
We test the compressor windings, start relay, capacitor and overload to separate a failed motor from a failed start device before any major part is quoted.
- 5
Quote repair versus replace
You get a written quote with parts and labor spelled out, plus honest advice on whether to repair the sealed system or replace the unit.
- 2 independent sealed systems in every built-in
- $89 service call, waived with your repair
- 365-day warranty on all labor
- 4.9 / 5 from 668 local reviews
The Diablo Valley angle
Inland heat is hard on compressors here
Walnut Creek summers change the math on a marginal sealed system.
A compressor works against the pressure it has to push heat into. When Walnut Creek and the surrounding Diablo Valley climate deliver a string of 100°F days, the head pressure climbs, the condenser has to shed far more heat, and any weakness — a slightly low charge, a tired start relay, a condenser packed with dust — turns a unit that limped through spring into one that quits in July. We see the pattern every summer across Rossmoor, Saranap and Rudgear Estates: the sealed system was already on the edge, and the first heat wave pushed it over.
That is why our sealed-system work always includes verifying condenser airflow and the exact charge, not just swapping the obvious failed part. An evaporator brazed in over a packed, heat-soaked condenser will not last. Clearing the airflow, weighing in a precise charge and renewing the filter-drier is what makes a Walnut Creek repair hold through the next inland summer instead of returning in a month.
Repair or replace
Honest advice with real numbers
A sealed-system repair is a serious investment — here is how we help you decide.
A full built-in Sub-Zero replacement runs roughly $7,000 to $12,000 once the matched panels, custom cabinetry cut-outs and installation are counted. Against that, a sealed-system repair of $1,450 to $3,600 is frequently the sound choice — especially on the Classic 600 and 700-series units common in Rossmoor and Walnut Heights, which were engineered to be serviced for decades. When we quote, we weigh the cabinet condition, the health of the second sealed system, the age of the unit and how long you plan to stay, then put a clear recommendation in writing alongside the price.
If the second system is sound and the cabinet is solid, repairing one sealed system is almost always the better value. If both systems are tired on a very old unit, we will say so plainly rather than sell you a repair that buys only a season. Either way you get genuine OEM parts, a 365-day labor warranty, and the $89 service call credited to the work — see the full numbers on the repair cost guide.
Keep exploring
Related Sub-Zero help
-
Sub-Zero not cooling
Start here if a zone is warm — we rule out fans, dampers and controls before the sealed system.
Learn more -
Repair cost guide
Every Walnut Creek repair range, symptom by symptom, with parts versus labor spelled out.
Learn more -
Diablo Valley climate effects
How inland heat loads condensers and compressors, and why local units need verified airflow.
Learn more
Reviews
Sealed-system repairs owners trust
Pressure-tested diagnoses and honest quotes across Walnut Creek and the Diablo Valley.
-
Our built-in Sub-Zero stopped holding temperature the week of a dinner party. They diagnosed a failing condenser fan the same afternoon, had the part on the van, and the $89 service call was waived once we approved the repair. Fridge has been rock-solid since, and they stand behind the labor for a year.
-
We have a 22-year-old Sub-Zero 650 in our Rossmoor place and assumed it was done for. Instead of pushing a $9,000 replacement they walked us through a sealed-system repair with a clear written quote, then honored it to the dollar. Honest people — rare in this trade.
-
My Sub-Zero wine column had drifted up to 60°F and I was worried about the collection. The tech found a failed evaporator fan and a clogged drain line, fixed both, and showed me how to keep the dual zones stable. Careful around the custom cabinetry too.
Sealed-system answers
Compressor & sealed-system FAQ
How much does a Sub-Zero compressor replacement cost in Walnut Creek?
A full sealed-system compressor replacement typically runs $1,450 to $3,600 in Walnut Creek, with roughly $550 to $1,400 in parts and $900 to $2,200 in labor. The wide range reflects which series you own, single or dual systems, and access. We confirm the price in writing only after pressure and electrical testing, and the $89 service call is waived with your repair.
How much is a Sub-Zero evaporator replacement?
An evaporator repair is a sealed-system job because the loop must be opened, recovered, brazed, vacuumed and recharged. In practice it lands within the same compressor and sealed-system band, commonly $1,450 to $3,600 depending on which coil and zone is affected. A new filter-drier is always installed, and the work carries our 365-day labor warranty.
Is a sealed-system repair worth it on an older Sub-Zero?
Usually yes. A sealed-system repair is far less than a $7,000 to $12,000 built-in replacement, and Classic 600 and 700-series units common in Rossmoor and Walnut Heights were engineered to be serviced for decades. We weigh the cabinet condition, the second sealed system and your plans, then give honest repair-versus-replace advice in writing so you can decide with real numbers.
Why must you pressure-test before quoting?
A warm Sub-Zero can come from a fan, a damper, a defrost fault, a control board or the sealed system itself, and several of those cost a fraction of a compressor. Manifold gauges and electrical readings tell us exactly which, so we never quote a sealed-system repair the unit does not need. That evidence-first step is the difference between a lasting fix and an expensive guess.
How long does a sealed-system or compressor repair take?
Most sealed-system jobs run two to six hours of on-site work, plus time for parts on certain models. We recover the old refrigerant, braze in the new component and filter-drier, pull a deep vacuum to remove moisture, then weigh in an exact charge and verify temperatures before we leave. Some repairs finish in one visit; others need a return once a specific part arrives.
Do you handle Sub-Zero sealed-system repair near me in the Diablo Valley?
Yes. We cover Walnut Creek neighborhoods including Northgate, Rudgear Estates, Walnut Heights, Saranap and Rossmoor, plus nearby Lafayette, Alamo, Pleasant Hill, Concord and Danville. Call (650) 668-1554 with your model and serial number and we can often give a likely range before we arrive, then confirm it with gauges on site.
Read the symptoms
Sealed-system symptoms we pressure-test
These point to the sealed system — and all of them need real readings before a quote.
| Symptom | Likely cause | How we confirm |
|---|---|---|
| Both fresh-food and freezer warm | Compressor, low charge or a sealed-system leak | Pressure and electrical test before any quote |
| Compressor runs constantly, never cold | Low charge or a restriction in the sealed system | Gauge the system to confirm |
| Frost on only part of the evaporator | Refrigerant restriction or partial blockage | Sealed-system diagnosis |
| Clicking then silence | Failing compressor or start components (overload) | Electrical test of the compressor |
Get a pressure-tested sealed-system diagnosis
Call (650) 668-1554 or book online. We prove the fault with gauges before quoting — $89 service call waived with repair, 365-day labor warranty, genuine OEM parts.
